Features

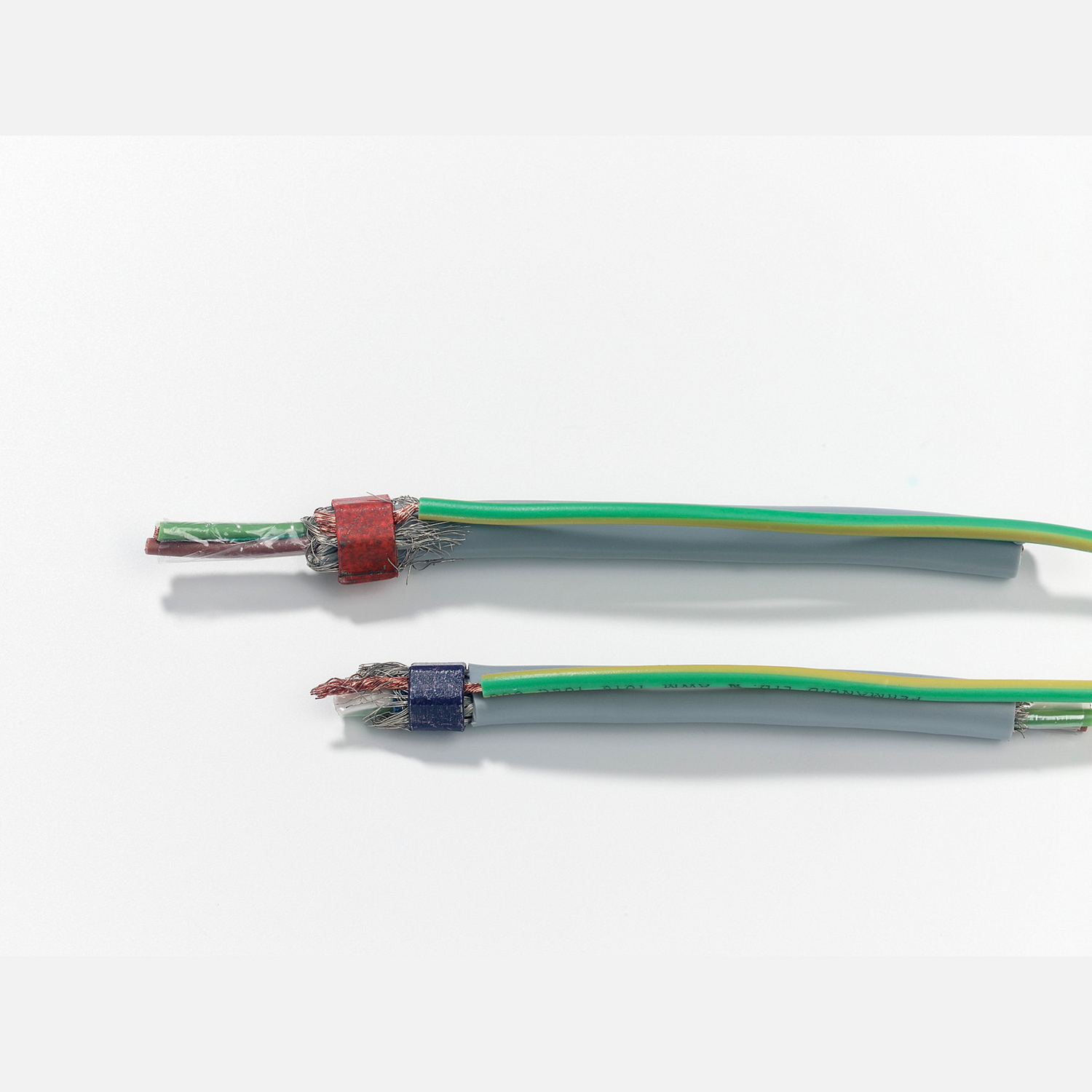

Shielded cable grounding system made of 2 cylindrical sleeves (inner sleeve + outer sleeve), for solderless crimp connection. Inner sleeve for the Hexagonal Range (the corresponding outer sleeve is crimped with a hand tool and the result is a hexagonal-shaped crimp), for grounding shielded and coaxial cables. The sleeves are color coded according to their size. Millions of installations in communications, aerospace, electronic, telephone, radio and TV applications.
General
Material	Hard bronze
Finish	Tin plated (per MIL-T-10727A)
Color	Gray
Dimension Information
Length (inches)	.311
Length (mm)	7.9
Inner Diameter (inches)	.115
Inner Diameter (mm)	2.92
Outer Diameter (inches)	.146
Outer Diameter (mm)	3.7
Length (mm)	7.9
Specifications
MIL Specification	21981-115
Packaging
Order Multiple	1000
Inner Package	1000
Outer Package	10000
Package Height	3.5
Package Length	7.6
Package Width	6.6
T&B Sold in UOM	Each
T&B Weight Per UOM	0.06 lbs. per 100
Application Support
T&B Sales Drawings	wsd-000206
Overview	Click Here
Installation Overview	Click Here
Certifications
RoHS Compliance	Yes   Generate Compliance Certificate
