Conduit Bodies & Covers-PVC Coated
T&B Catalog Number:
C18-4X-G
UPC Number:
70450802392
Status:
Active
Description:
1/2 in. Dark Gray PVC Coated Type C Form 8 UL-4X Gray Iron Conduit Body and Cover.
Available Finishes:
SUBMITTAL PACKAGE
Where To Buy

Enter Zip Code:
Enter Quantity:


Features
  • UL Listed Type 4X and NEMA 4X rating for excellent protection in wash down areas, as well as harsh outdoor environments exposed to moisture, rain, ice or snow.
  • Double coated superior corrosion protection, bodies and covers coated inside and out with .002 in. blue urethane, then exterior coated with a minimum of .040 in. PVC.
  • PVC coated cast iron conduit body comes with mated cast iron cover, injection molded with an integral O-ring seal and stainless steel encapsulated screws.

Application
  • Act as pull outlets for conductors being installed
  • Provide openings for making splices and taps in conductors
  • Connect conduit sections
  • Provide taps for branch conduit runs
  • Make 90° bends in conduit runs
  • Provide for access to conductors for maintenance and future system changes

General
Trade Size (inches) 1/2
Material Gray Iron
Finish PVC Coated
Color Dark Gray
Conduit Body Shape C

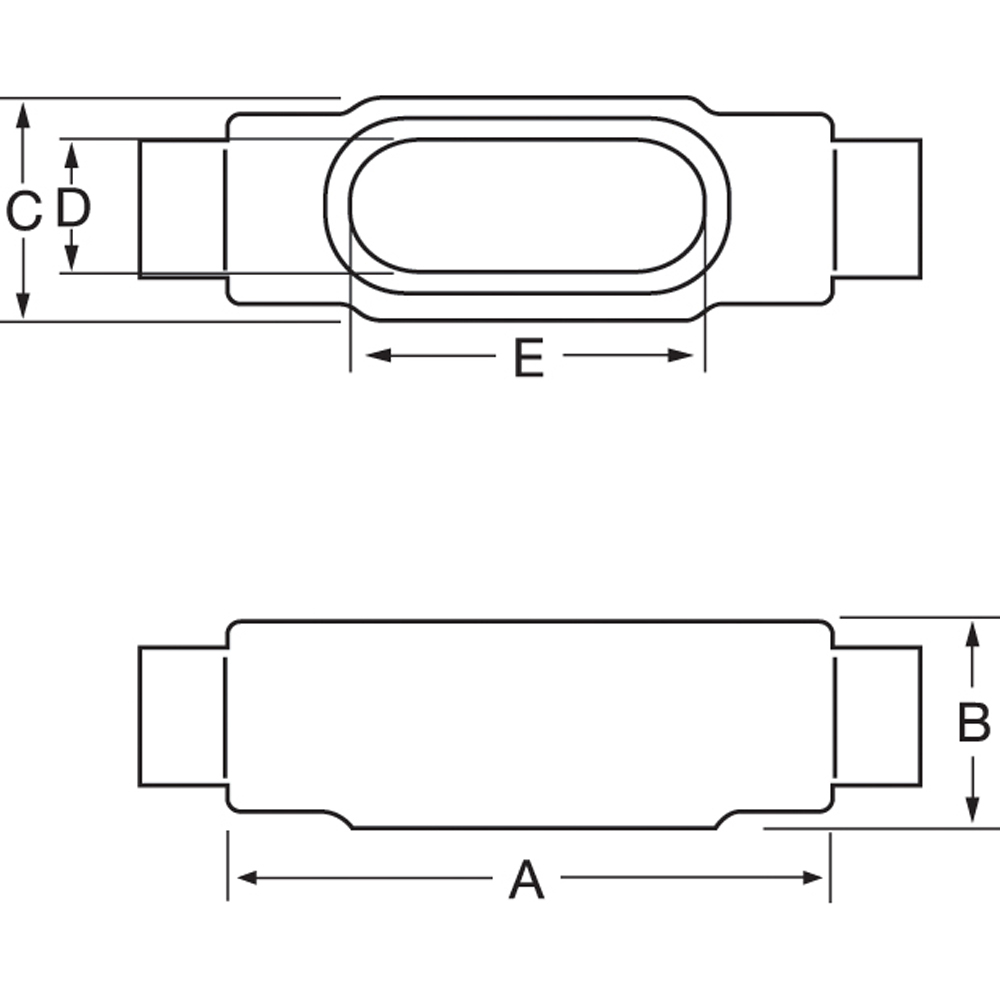

Dimension Information
Dimension A (inches) 5 11/16
Dimension B (inches) 1 7/16
Dimension C (inches) 1 3/8
Dimension D (inches) 1
Dimension E (inches) 3 5/16

Technical Information
 Chemical Resistance Chart Click Here

Specifications
 Ocal Specification Guide-1995 Master Format Click Here
 Ocal Specification Guide-1995 Master Format Click Here
 Ocal Specification Guide-2004 Master Format Click Here
 Ocal Specification Guide-2004 Master Format Click Here

Packaging
Outer Package 10
Package Height 7.62
Package Length 13.5
Package Width 7.5
T&B Sold in UOM Each
T&B Weight Per UOM 175 lbs. per 100

Application Support
 Ocal PVC Coated Conduit System Click Here
 Ocal Specifications Click Here
 Recommended Installation Procedures Click Here
 Product Overview-Conduit Outlet Bodies Click Here
 NEMA Standards-RN 1 Click Here
 NEC 310-16 - Conductors for General Wiring Click Here
 NEC Table 8 Click Here

Notes
  • Dimensional values are of uncoated conduit bodies.
  • Available in dark gray, white and light blue. Custom colors are also available upon request. Please contact Technical Services-888-862-3289
Certifications

File Nbr:
E 2969
