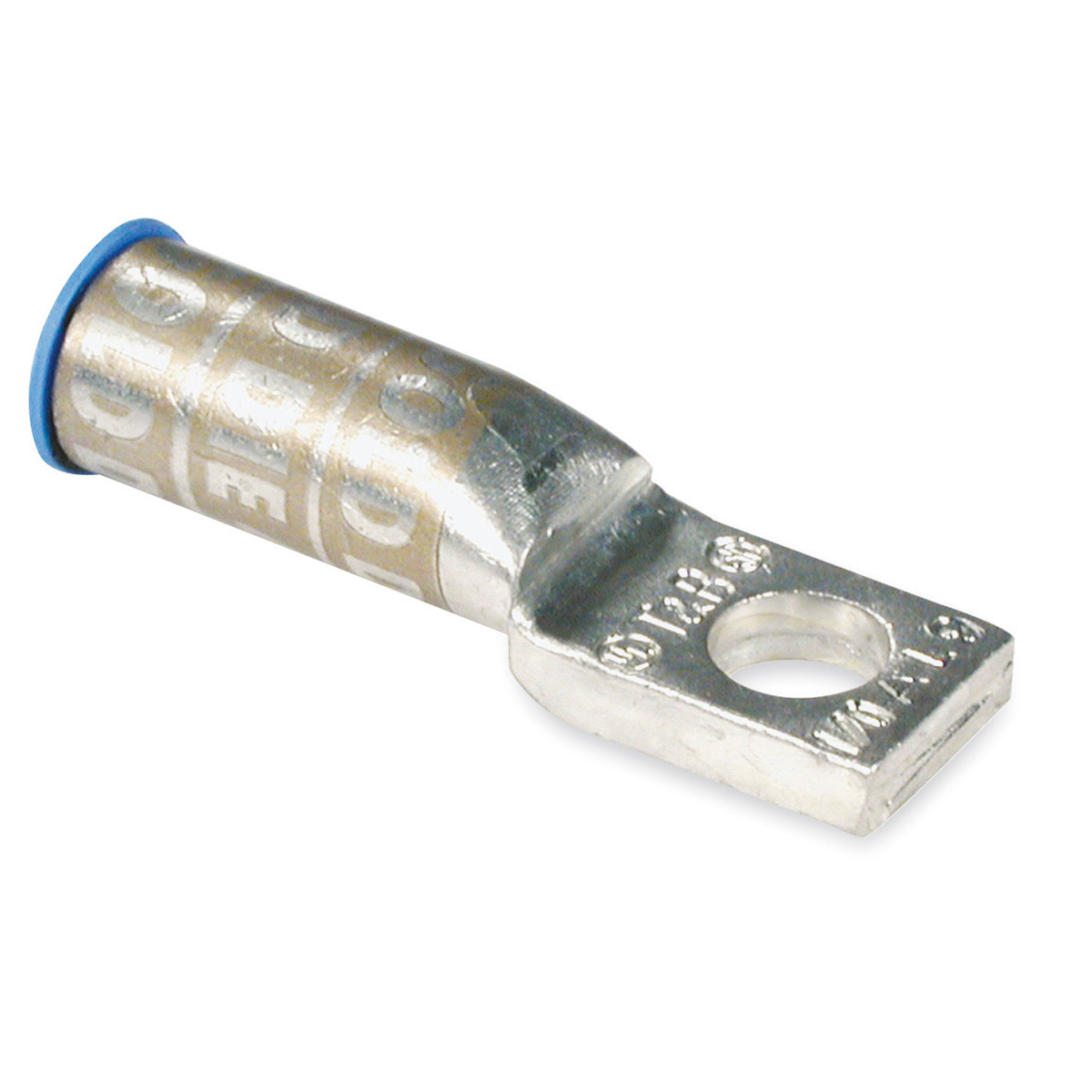

| Features |
- For use with aluminum cables only. Can be direcly substituted for equipment mechanical lugs in most applications.
|
- Electro Tin-Plated for Corrosion Resistance. Factory-filled with joint compound. Supplied with Neoprene insulating covers.
|
- Cable Area Clearly Identified on Lug. Only 7 dies handle all 14 lug sizes.
|
|
| General |
Style |
Compact Size |
Insulation Type |
Neoprene |
Material |
Aluminum |
Finish |
Tin Plated |
Wire Size |
1/0 AWG |
Aluminum Range Taking |
#8-1/0 |
Strip Length (inches) |
3/4 |
Number of Studs |
1 |
Stud Size (inches) |
3/8 |
Tongue Angle |
Straight |
Barrel Length |
Long |
Barrel Shape |
Standard |
Tongue Width |
Standard |
Peep Hole |
Y |
Marking |
Standard |
Hole Shape |
Round |
Die Color |
Gold |
Die Code |
45 |
|

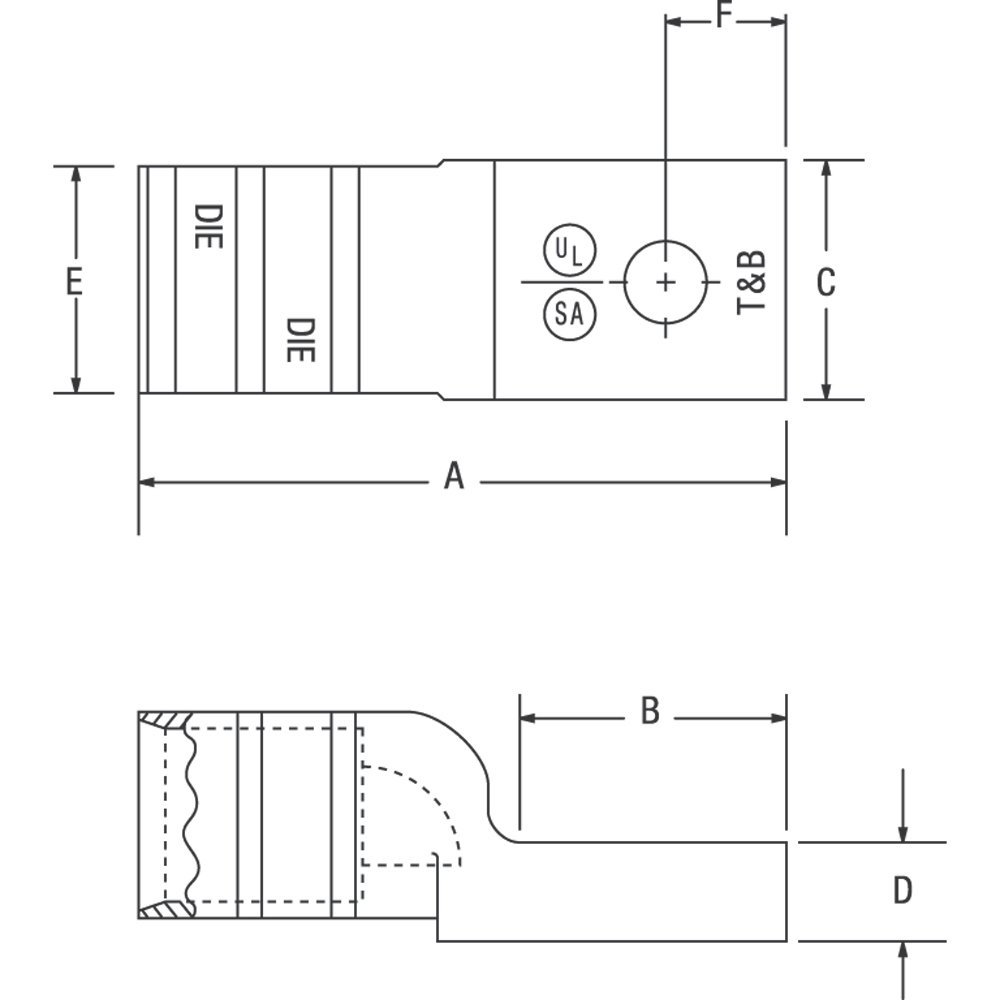

| Dimension Information |
Strip Length (inches) |
3/4 |
A (inches) |
2 |
B (inches) |
.83 |
C (inches) |
.64 |
D (inches) |
.2 |
E (inches) |
.57 |
F (inches) |
.38 |
|
| Specifications |
Temperature Rating |
90°C |
Voltage Rating |
600V |
|
| Tooling |
 Connector & Tooling Chart |
Click Here |
|
| Packaging |
Order Multiple |
10 |
Inner Package |
10 |
Outer Package |
100 |
Package Height |
6.6 |
Package Length |
10.3 |
Package Width |
8.5 |
T&B Sold in UOM |
Each |
T&B Weight Per UOM |
7 lbs. per 100 |
|
| Application Support |
Overview |
Click Here |
|
| Notes |
- Dimensions given for reference only. Dimensions may vary up to +/- .030.
|
- For range-taking capability, use TBM8750 ot TBM8750M1Smart Tool.
|
|
| Certifications |
RoHS Compliance |
Yes Generate Compliance Certificate |
